Step in depth antenna#
A step in width microstrip antenna is a design variation where the radiating patch element has a non-uniform width that changes along its length. Instead of a simple rectangular patch, the conducting strip gradually narrows or widens at specific points.
import gmsh
import math
import os
from pathlib import Path
from palacetoolkit.viz import view_mesh
from palacetoolkit.mesh import (
Entity,
run_entity_pipeline,
generate_3d_mesh,
create_graded_mesh,
)
from palacetoolkit.simulation import Simulation, run_palace
Parameters:#
l1 : Ground plane length along x-axis, specified as a scalar in meters
w1 : Ground plane width along y-axis, specified as a scalar in meters
h : Patch height along z-axis, specified as a scalar in meters.
strip_line_length : Notch length along x-axis, specified as a scalar in meters.
strip_lined_width_near_port: Notch width along x-axis near the port, specified as a scalar in meters.
strip_lined_width_far: Strip line width along y-axis far from the port, specified as a scalar in meters.
air_height : Air box height along z-axis, specified as a scalar in meters.
air_margin : Air box margin along x and y axes, specified as a scalar in meters.
freq : Simulation frequency in GHz, specified as a scalar.
filename : Output mesh filename, specified as a string.
l1: float = 0.06
w1: float = 0.06
strip_line_length: float = 0.06
strip_line_width_near_port: float = 0.001
strip_line_width_far: float = 0.003
h: float = 0.0013
air_height: float = 0.025
air_margin: float = 0.025
freq: float = 3.3
filename: str = "sw_antenna.msh"
wavelength = 3e8 / (freq * 1e9)
Initialize the model#
gmsh.initialize()
gmsh.model.add("patch_antenna")
kernel = gmsh.model.occ
Geometry generation#
# Total domain bounds
total_xmin = -l1/2 - air_margin
total_xmax = l1/2 + air_margin
total_ymin = -w1/2 - air_margin
total_ymax = w1/2 + air_margin
total_zmax = h + air_height
substrate = kernel.addBox(-l1/2, -w1/2, 0, l1, w1, h)
ground_plane = kernel.addRectangle(-l1/2, -w1/2, 0, l1, w1)
strip_line_1 = kernel.addRectangle(-l1/2, -strip_line_width_near_port/2, h, strip_line_length/2, strip_line_width_near_port)
strip_line_2 = kernel.addRectangle(0, -strip_line_width_far/2, h, strip_line_length/2, strip_line_width_far)
top_conductor, _ = kernel.fuse(
[(2, strip_line_1)], [(2, strip_line_2)],
removeObject=True, removeTool=True
)
kernel.synchronize()
gap = 0
lumped_port = kernel.addRectangle(-l1/2 + gap, -strip_line_width_near_port/2, 0, h - gap, strip_line_width_near_port)
kernel.rotate([(2, lumped_port)], -l1/2, 0, 0, 0, 1, 0, -math.pi/2)
kernel.synchronize()
# Replace box with an enclosing air sphere, following the patch_antenna pattern.
airsphere_radius = max(abs(total_xmin), abs(total_xmax), abs(total_ymin), abs(total_ymax), total_zmax)
air_sphere = kernel.addSphere(0.0, 0.0, 0.0, airsphere_radius)
kernel.synchronize()
Info : [ 0%] Union
Info : [ 10%] Union
Info : [ 20%] Union
Info : [ 30%] Union
Info : [ 40%] Union
Info : [ 50%] Union
Info : [ 70%] Union
Info : [ 80%] Union - Splitting faces
Info : Cannot bind existing OpenCASCADE surface 8 to second tag 9
Info : Could not preserve tag of 2D object 9 (->8)
Entities definition#
# Material and port constants reused in meshing/config sections.
eps_r: float = 2.2
loss_tan: float = 0.0009
port_impedance: float = 50.0
entities = [
Entity("air_sphere", dim=3, btype="dielectric", mesh_order=2, tags=[air_sphere], eps_r=1.0, mu_r=1.0, loss_tan=0.0),
Entity("substrate", dim=3, btype="dielectric", mesh_order=1, tags=[substrate], eps_r=eps_r, mu_r=1.0, loss_tan=loss_tan),
Entity("top_conductor", dim=2, btype="pec", mesh_order=1, tags=[top_conductor[0][1]]),
Entity("ground_plane", dim=2, btype="pec", mesh_order=1, tags=[ground_plane]),
Entity("lumped_port", dim=2, btype="lumped_port", mesh_order=0, tags=[lumped_port], R=port_impedance, direction="+Z", excitation=True),
]
pg_map = run_entity_pipeline(entities)
# Refine near the top conductor and locally the lumped port
create_graded_mesh( wavelength,
ppw_near=50,
ppw_far=30,
set_as_background=True)
print(entities)
# Mesh sizes
mesh_sizes = {
"substrate": wavelength / 12,
"air_sphere": wavelength / 4,
"lumped_port": wavelength / 150,
"ground_plane": wavelength / 10,
"top_conductor": wavelength / 50,
}
generate_3d_mesh(entities, mesh_sizes, filename, optimize=True, verbose=False)
view_mesh(filename, transparent_groups="air_sphere__None")
Physical group 'air_sphere' (dim=3): pg=1, tags=[2]
Physical group 'substrate' (dim=3): pg=2, tags=[1]
Physical group 'top_conductor' (dim=2): pg=3, tags=[8]
Physical group 'ground_plane' (dim=2): pg=4, tags=[7]
Physical group 'lumped_port' (dim=2): pg=5, tags=[9]
Physical group 'air_sphere__None' (dim=2): pg=6, tags=[17]
Physical group 'air_sphere__substrate' (dim=2): pg=7, tags=[10, 11, 13, 15, 16, 14, 12]
ignoring 3 curves from {'air_sphere__None'}
global: 26 curves, SizeMin=0.0018
ppw_near=50 ppw_far=30
SizeMax=0.0030 transition=0.0227
[Entity('air_sphere', dim=3, order=2, tags=[2]), Entity('substrate', dim=3, order=1, tags=[1]), Entity('top_conductor', dim=2, order=1, tags=[8]), Entity('ground_plane', dim=2, order=1, tags=[7]), Entity('lumped_port', dim=2, order=0, tags=[9])]

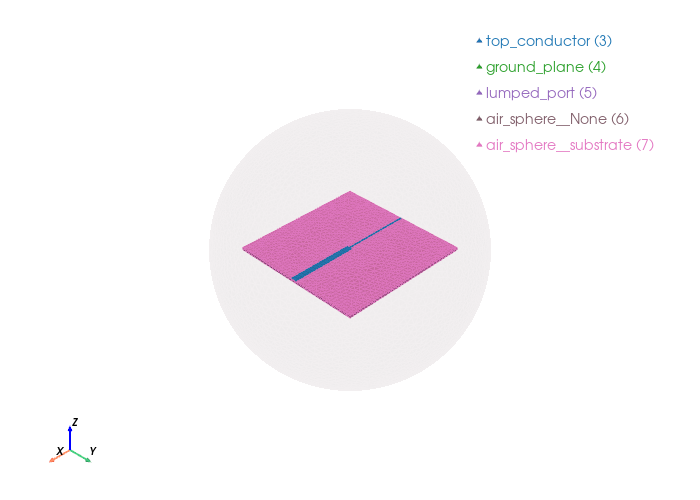

Loading mesh file: sw_antenna.msh
Groups to render transparent: air_sphere__None
Mesh loaded successfully with 2 cell blocks
Found 15988 triangles total
Physical group tags in mesh: {3: 'top_conductor', 4: 'ground_plane', 5: 'lumped_port', 6: 'air_sphere__None', 7: 'air_sphere__substrate'}
Generate JSON config#
output_file: str = "sw_antenna.json"
freq_min: float = 3.0
freq_max: float = 3.5
freq_step: float = 0.005
solver_order: int = 2
def attr(name):
return [pg_map[name]] if name in pg_map else []
sim = Simulation(output_dir=os.getcwd(), apply_mesh_options=False)
sim.config = {
"Problem": {
"Type": "Driven",
"Verbose": 2,
"Output": "postpro/sw_antenna"
},
"Model": {
"Mesh": filename,
"L0": 1.0,
"Refinement": {}
},
"Domains": {
"Materials": [
{
"Attributes": attr("substrate"),
"Permittivity": eps_r,
"Permeability": 1.0,
"LossTan": loss_tan
},
{
"Attributes": attr("air_sphere"),
"Permittivity": 1.0,
"Permeability": 1.0
}
]
},
"Boundaries": {
"PEC": {
"Attributes": attr("ground_plane") + attr("top_conductor")
},
"LumpedPort": [
{
"Index": 1,
"Attributes": attr("lumped_port"),
"R": port_impedance,
"Excitation": True,
"Direction": "+Z"
}
],
"Absorbing": {
"Attributes": attr("air_sphere__None"),
"Order": 1
}
},
"Solver": {
"Order": solver_order,
"Device": "CPU",
"Driven": {
"MinFreq": freq_min,
"MaxFreq": freq_max,
"FreqStep": freq_step,
"AdaptiveTol": 0.001
},
"Linear": {
"Type": "Default",
"KSPType": "GMRES",
"Tol": 1.0e-8,
"MaxIts": 200,
"ComplexCoarseSolve": True
}
}
}
config_path = str(sim.write_config(output_file))
run_palace(config_path, num_procs=8, work_dir=os.getcwd())
Palace config written to /home/runner/work/PalaceToolkit/PalaceToolkit/docs/examples/sw_antenna.json
